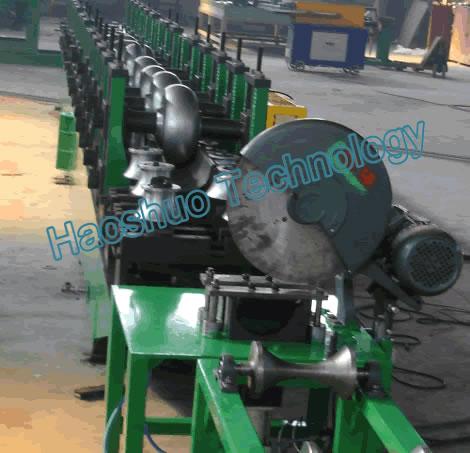

Gutter Forming Machine

Description According to customers' requirements, we design and manufacture gutter forming machine with different specifications. The main components of this gutter forming machine are decoiler, roll former, cutting device, hydraulic pump station, product table, and control cabinet, etc.

Properties
The frame of the gutter forming machine adopts profile steel construction and after welded, this machine utilizes integrity processing technology. It enjoys rational and beautiful structure, strong carrying ability, and stable and reliable performance. The forming roller of this machine is designed by professional technicists. The machine undergoes high precision processing and heat treatment before chromeplate. So this machine is characterized by high forming precision and long service life. The main components of this device are from products of famous brands, thus ensuring the whole performance and quality. Controlled by PLC, this machine is easy to operate, thus workers without special training can operate it very well. This equipment is convenient to debug, and enjoys low noise and high efficiency.

Operation and Points That Need Attention
The gutter forming machine is totally controlled by PLC. So only by inputting related production data such as number of products, length and punching dimension, users can start this machine to do manufacturing. If users want to adjust this machine or something else, they have to stop the machine first and carry out relevant operation.

Maintenance and Lubrication
Users should regularly do lubrication for chains of chainwheel, bearings and speed reducer, etc. And the forming rollers should be kept clean.

Transportation and Packing
This kind of machine should adopt nude packaging and container transport.

Parameters of the Machine
Suitable material: cold rolling steel, hot rolled coils, galvanized coils and general carbon steel, etc.
Suitable thickness: 0.4-1mm
Forming specifications: depending on specific requirements of customers
Forming speed: 10-15m/min
Main motor power: 5.5-7.5Kw (depending on specific requirements of users)
Hydraulic punching: no wastes cutting in hydraulic station
Hydraulic station power: 3Kw (depending on specific requirements of users)
Control system: PLC systems from Mitsubishi and Panasonic products, famous brand electrical appliances
Optional accessories: hydraulic uncoiler As a professional manufacturer and supplier of gutter forming machine, based in China, Wuxi Haoshuo Technology Co., Ltd mainly offers cold rolling mill, roll forming machine (such as z purlin forming machine, octagon pipe forming machine, etc), sandwich panel forming machine (EPS panel forming machine, PU panel forming machine), slitting line, cut to length line, radiator production line, bending machine, and hydraulic decoiler, etc. Located in Jiangsu Province, an hour drive from Shanghai City in China, we enjoy quite convenient transportation and can provide excellent service. We offer installation and debugging services of our devices and staff training for factories abroad and OEM service. For more guides of gutter forming machine, please contact us.
