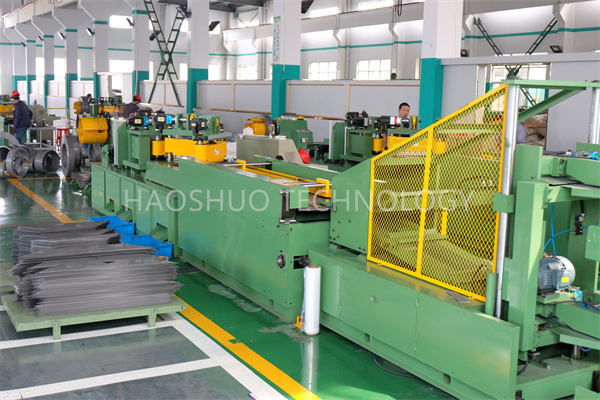

Step Lap Core Cutting Line
Step lap core cutting line is designed and built to produce transformer cores with step lap laminations. Multi step-lap construction is an advanced and green core design which suitable for high efficiency transformers. It can obviously improve the core performance, reduce no-load loss, sound level and magnetizing currents. The line has two punch and two cut, V notch can transverse moving driven by servo motor.
Description:
Step lap core cutting line is designed and built to produce transformer cores with step lap laminations. Multi step-lap construction is an advanced and green core design which suitable for high efficiency transformers. It can obviously improve the core performance, reduce no-load loss, sound level and magnetizing currents. The line has two punch and two cut, V notch can transverse moving driven by servo motor. It can automatically cut step lap cores, meet different requirements of core design. With hole punching for stacking positioning, it can save core assembly times and simplify top yoke insertion. The machines can produce a wide range of transformer cores, minimizing set-up times. The core cutting lines can be equipped with manual or automatic stackers.
Main Features:
Servo-driven shears and notches to ensure the high precision production
Quick adjusting and setting for different core shapes with high-speed working
Longitudinal and transverse step lap cutting, diversified function
Exact sheet lengths and low burr cutting, high reliability in core production
User friendly touch screen control, easy operation and easy maintenance
Fully electric running with lower noise and energy conservation.
Main Technical Data:
Step lap core cutting line is designed and built to produce transformer cores with step lap laminations. Multi step-lap construction is an advanced and green core design which suitable for high efficiency transformers. It can obviously improve the core performance, reduce no-load loss, sound level and magnetizing currents. The line has two punch and two cut, V notch can transverse moving driven by servo motor. It can automatically cut step lap cores, meet different requirements of core design. With hole punching for stacking positioning, it can save core assembly times and simplify top yoke insertion. The machines can produce a wide range of transformer cores, minimizing set-up times. The core cutting lines can be equipped with manual or automatic stackers.
Main Features:
Servo-driven shears and notches to ensure the high precision production
Quick adjusting and setting for different core shapes with high-speed working
Longitudinal and transverse step lap cutting, diversified function
Exact sheet lengths and low burr cutting, high reliability in core production
User friendly touch screen control, easy operation and easy maintenance
Fully electric running with lower noise and energy conservation.
Main Technical Data:
1. Strip width: 30 to 300mm, 40 to 400mm, 60 to 600mm
2. Strip thickness: 0.23 – 0.35 mm CRGO electrical steel
3. Decoiler: single head or double head decoiler
4. Hole punch: 1 hole punch, option for 2nd hole punch
5. V notch: 1 CNC crosswise, servo-driven, option for 2nd V notch
6. Shear: 1 1 x 45° and 1 x 45°/90°, servo-driven
7. Stacking system: manual or automatic stacking
8. Control system: PLC + Touch screen
