AFD-600 Aluminum Flexible Duct Forming Machine

Through our years of development, now we at Haoshuo have the capacity of designing and producing the roll forming machine based on customer's requirements, whether it is stud/track drywall profile roll forming machine, gutter roll forming machine, octangular tube roll forming machine, slide rail guide rail roll forming machine, T-bar roll forming machine, cable tray roll forming machine, lipped channel roll forming machine, or PVC reinforcement profile roll forming machine etc. Give us your profile, we will give you the machine.

Inquiry Form

Description of AFD-600 Aluminum Flexible Duct Forming Machine
This aluminum flexible duct forming machine is specially designed for producing aluminum flexible ducts with aluminum foil or metalized PET film with steel wire reinforced for ventilation purpose.

Main Technical Data of AFD-600 Aluminum Flexible Duct Forming Machine:

Item		Specifications
Diameter of aluminum flexible duct		80-600mm
Length of aluminum flexible duct		1-10m
Raw material	Metalized PET film	0.012mm in thickness, 35-50mm in width
	Pure aluminum foil	0.025-0.035mm in thickness, 35-50mm in width
	Steel wire	Dia.: 0.8-1.4mm
Aluminum flexible duct	Temperature resistance	-30-140℃
	Max. air flux	30m/s
	Max. working pressure	2500Pa
	Pitch between corrugations	20mm
Main driving motor power		1.5kW
Glue heating temperature		40-120℃
Electric heating power		2.4kW
Film/foil feeding speed		1-35m/min
Machine dimension		About 2200×820×1550mm

PAD-300 Aluminum Flexible Duct Forming Machine

Description of PAD-300 Aluminum Flexible Duct Forming Machine

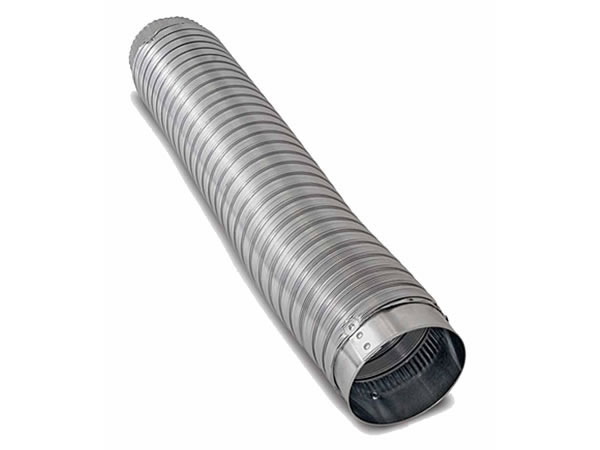

This aluminum flexible duct forming machine is specially used for producing aluminum flexible ducts with pure aluminum foil or stainless steel without steel wire reinforcement for various purpose. Especially our omnipotent mould can greatly save investment cost.

Main Technical Data of PAD-300 Aluminum Flexible Duct Forming Machine:

Item		Specifications
Diameter of flexible aluminum duct		60-300mm
Length of flexible aluminum duct		100-8000mm
Material width		42-55mm
Raw material thickness	Pure aluminum foil	0.05-0.15mm (Code: 8011, hardness: H22)
	Stainless steel	0.08-0.18mm
Production speed		1-5m/min
Main machine size		1200×550×1200mm
Duct compressing device for easy transportation		3000×480×1500mm
Weight		About 250kg
PLC control		Famous brand

Besides this duct forming machine, other high quality forming machines are supplied by Haoshuo.
